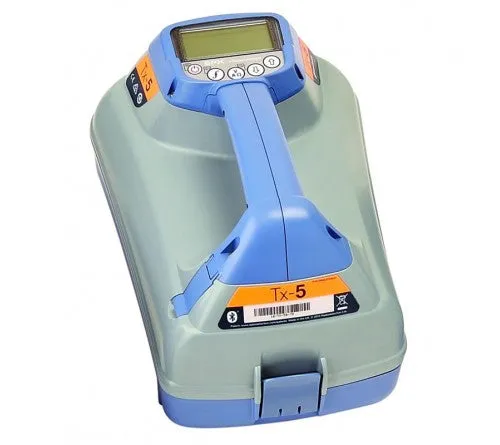

RadioDetection 5 Watt Transmitter to suit Underground Services Locator
Cable and Pipe Locator Range
Based on a fully digital platform, the Tx family of signal transmitters has been designed to complement Radiodetection’s advanced high-precision cable and pipe locators including the RD8100 and Marker Locator ranges
The Tx range is designed to meet the demands of tracing utilities through today’s complex underground infrastructure. The Tx-1 is a low power transmitter. The Tx-5 has a higher power and induction capability as well as Fault-Find. The Tx-10 has the highest power capability with both Fault-Find and CD modes as standard.
The transmitter range features locate frequencies compatible with locators across the Radiodetection Precision Locator ranges and can be easily customized to match your chosen locator using the ‘model’ feature.

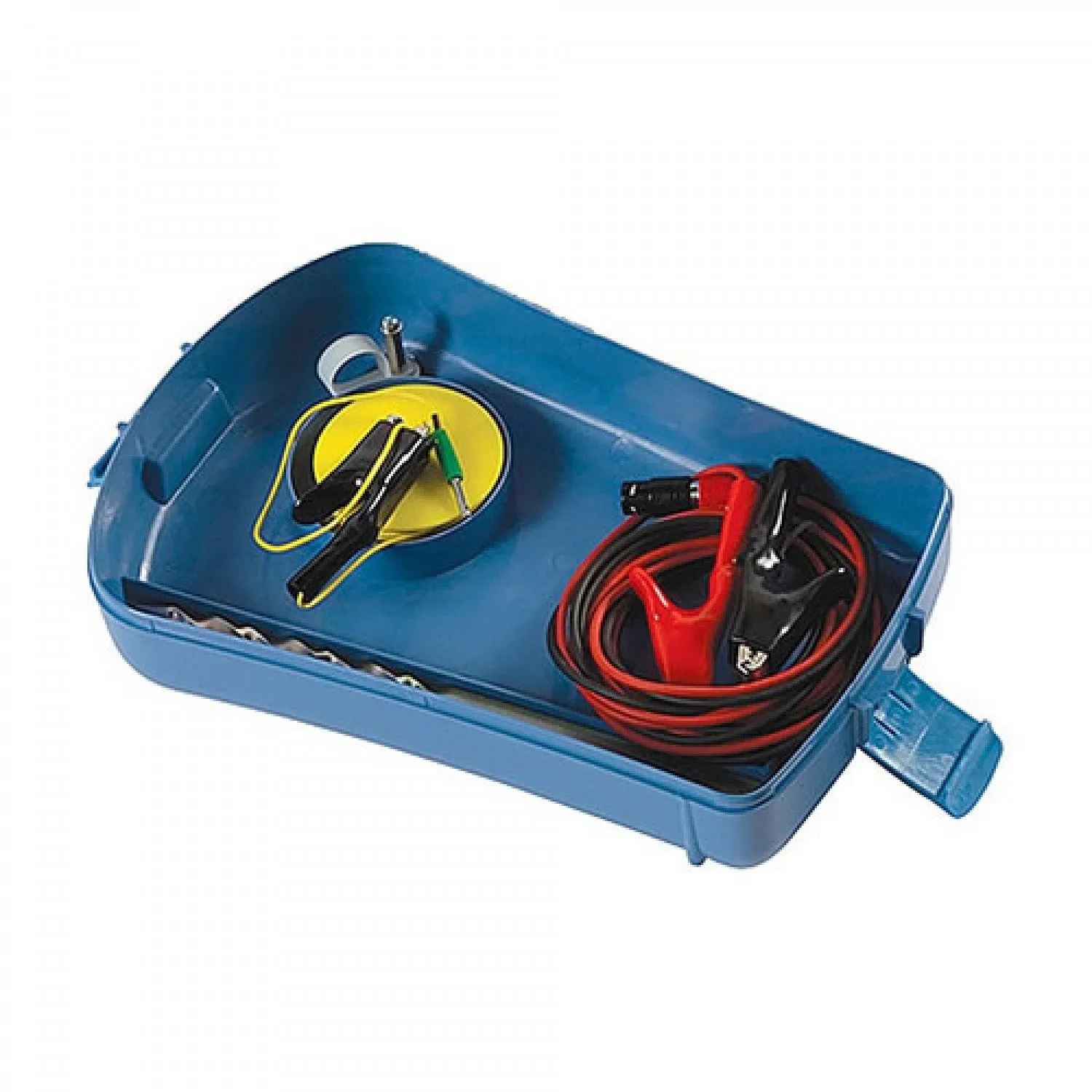

All transmitters feature constant current across their entire bandwidth in all modes (direct connect, clamp or inductive mode), and deliver convenience on-site with an IP65 ingress protection rating, removable accessory tray, and a large, high-contrast, backlit LCD screen.
FEATURES
High voltage output makes sure that you can get locatable signal onto even high impedance lines like telephone pairs.
Apply a Fault-Find signal with the Tx-5 and Tx-10 transmitter and use an accessory A-frame to detect and pinpoint insulation faults.
The transmitter can be used to recommend a general-purpose locate frequency for the intended locate task by measuring the impedance of the target cable or pipe. SideStepAuto helps to improve locate accuracy and extends battery life.
Transmit you're located signal as far as possible by automatically matching the transmitter impedance to that of your target cable.
Deliver extended run-time, lighter weight and superior cold-weather performance by comparison to standard alkaline batteries.
No need for operators to replace, manage and recycle alkaline battery cells, reducing the associated costs, workload and environmental burden.
Shock resistant, ingress protected casing protects against knocks, drops, water and dust.
Extend alkaline battery life by enabling ECO mode. When a low battery condition is detected the transmitter gradually reduces the power output and provides audio and visual warnings.
Measure output voltage, line voltage, current, impedance and power, and characterize faults on the target line before beginning a survey
SPECIFICATIONS
| Max. Output Power | 5W |
| Active Frequencies | 16 |
| Induction frequencies | 8 |
| Fault Find | ✔ |
| Induction field strength | 0.85 |
| Eco Mode | ■ |
| Lithium-Ion Battery | ● |
